Emotion Detection¶

This tutorial is available as an IPython notebook at malaya-speech/example/emotion.

This module is language independent, so it save to use on different languages.

This is an application of malaya-speech Pipeline, read more about malaya-speech Pipeline at malaya-speech/example/pipeline.

Dataset¶

Trained on Toronto emotional speech set (TESS) with augmented noises, https://tspace.library.utoronto.ca/handle/1807/24487

[1]:

import malaya_speech
import numpy as np
from malaya_speech import Pipeline

[2]:

y, sr = malaya_speech.load('speech/video/The-Singaporean-White-Boy.wav')
len(y), sr

[2]:

(1634237, 16000)

[3]:

# just going to take 30 seconds
y = y[:sr * 30]

[4]:

import IPython.display as ipd
ipd.Audio(y, rate = sr)

[4]:

This audio extracted from https://www.youtube.com/watch?v=HylaY5e1awo&t=2s

Supported emotions¶

[5]:

malaya_speech.emotion.labels

[5]:

['angry',
 'disgust',
 'fear',
 'happy',
 'sad',
 'surprise',
 'neutral',
 'not an emotion']

List available deep model¶

[6]:

malaya_speech.emotion.available_model()

INFO:root:last accuracy during training session before early stopping.

[6]:

	Size (MB)	Quantized Size (MB)	Accuracy
vggvox-v2	31.1	7.92	0.9509
deep-speaker	96.9	24.40	0.9315

Load deep model¶

def deep_model(model: str = 'vggvox-v2', quantized: bool = False, **kwargs):
    """
    Load emotion detection deep model.

    Parameters
    ----------
    model : str, optional (default='vggvox-v2')
        Model architecture supported. Allowed values:

        * ``'vggvox-v2'`` - finetuned VGGVox V2.
        * ``'deep-speaker'`` - finetuned Deep Speaker.
    quantized : bool, optional (default=False)
        if True, will load 8-bit quantized model.
        Quantized model not necessary faster, totally depends on the machine.

    Returns
    -------
    result : malaya_speech.supervised.classification.load function
    """

[7]:

vggvox_v2 = malaya_speech.emotion.deep_model(model = 'vggvox-v2')
deep_speaker = malaya_speech.emotion.deep_model(model = 'deep-speaker')

/Users/huseinzolkepli/Documents/tf-1.15/env/lib/python3.7/site-packages/tensorflow_core/python/client/session.py:1750: UserWarning: An interactive session is already active. This can cause out-of-memory errors in some cases. You must explicitly call `InteractiveSession.close()` to release resources held by the other session(s).
  warnings.warn('An interactive session is already active. This can '

Load Quantized deep model¶

To load 8-bit quantized model, simply pass quantized = True, default is False.

We can expect slightly accuracy drop from quantized model, and not necessary faster than normal 32-bit float model, totally depends on machine.

[8]:

quantized_vggvox_v2 = malaya_speech.emotion.deep_model(model = 'vggvox-v2', quantized = True)

WARNING:root:Load quantized model will cause accuracy drop.

How to classify emotions in an audio sample¶

So we are going to use VAD to help us. Instead we are going to classify as a whole sample, we chunk it into multiple small samples and classify it.

[9]:

vad = malaya_speech.vad.deep_model(model = 'vggvox-v2')

[10]:

%%time

frames = list(malaya_speech.utils.generator.frames(y, 30, sr))

CPU times: user 1.85 ms, sys: 100 µs, total: 1.95 ms
Wall time: 1.98 ms

[11]:

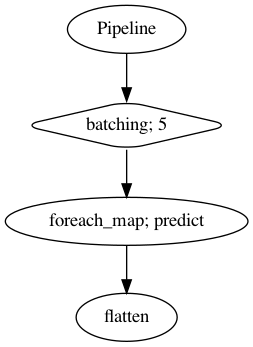

p = Pipeline()
pipeline = (
    p.batching(5)
    .foreach_map(vad.predict)
    .flatten()
)
p.visualize()

[11]:

[12]:

%%time

result = p.emit(frames)
result.keys()

/Users/huseinzolkepli/Documents/tf-1.15/env/lib/python3.7/site-packages/librosa/core/spectrum.py:224: UserWarning: n_fft=512 is too small for input signal of length=480
  n_fft, y.shape[-1]

CPU times: user 33.7 s, sys: 6.16 s, total: 39.9 s
Wall time: 10.4 s

[12]:

dict_keys(['batching', 'predict', 'flatten'])

[13]:

frames_vad = [(frame, result['flatten'][no]) for no, frame in enumerate(frames)]
grouped_vad = malaya_speech.utils.group.group_frames(frames_vad)
grouped_vad = malaya_speech.utils.group.group_frames_threshold(grouped_vad, threshold_to_stop = 0.3)

[14]:

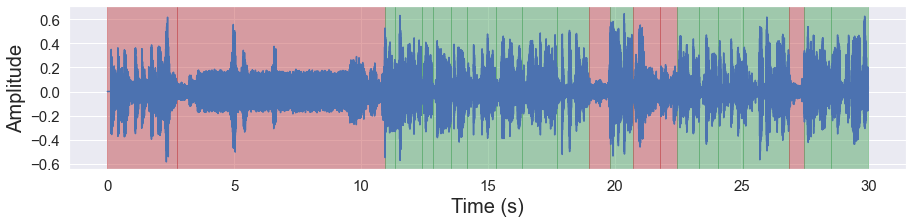

malaya_speech.extra.visualization.visualize_vad(y, grouped_vad, sr, figsize = (15, 3))

[15]:

p_vggvox_v2 = Pipeline()
pipeline = (
    p_vggvox_v2.foreach_map(vggvox_v2)
    .flatten()
)
p_vggvox_v2.visualize()

[15]:

[16]:

p_deep_speaker = Pipeline()
pipeline = (
    p_deep_speaker.foreach_map(deep_speaker)
    .flatten()
)
p_deep_speaker.visualize()

[16]:

[17]:

%%time

samples_vad = [g[0] for g in grouped_vad]
result_vggvox_v2 = p_vggvox_v2.emit(samples_vad)
result_vggvox_v2.keys()

CPU times: user 4.83 s, sys: 886 ms, total: 5.72 s
Wall time: 1.77 s

[17]:

dict_keys(['emotion', 'flatten'])

[18]:

%%time

samples_vad = [g[0] for g in grouped_vad]
result_deep_speaker = p_deep_speaker.emit(samples_vad)
result_deep_speaker.keys()

CPU times: user 5.47 s, sys: 927 ms, total: 6.39 s
Wall time: 1.97 s

[18]:

dict_keys(['emotion', 'flatten'])

[19]:

samples_vad_vggvox_v2 = [(frame, result_vggvox_v2['flatten'][no]) for no, frame in enumerate(samples_vad)]
samples_vad_vggvox_v2

[19]:

[(<malaya_speech.model.frame.Frame at 0x1489370d0>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943210>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489431d0>, 'fear'),
 (<malaya_speech.model.frame.Frame at 0x148943290>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x1489432d0>, 'neutral'),
 (<malaya_speech.model.frame.Frame at 0x148943350>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943390>, 'neutral'),
 (<malaya_speech.model.frame.Frame at 0x1489433d0>, 'angry'),
 (<malaya_speech.model.frame.Frame at 0x148943450>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943410>, 'sad'),
 (<malaya_speech.model.frame.Frame at 0x148943310>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943490>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489434d0>, 'sad'),
 (<malaya_speech.model.frame.Frame at 0x148943510>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943550>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489435d0>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943590>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943650>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943690>, 'sad'),
 (<malaya_speech.model.frame.Frame at 0x148943610>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943710>, 'angry'),
 (<malaya_speech.model.frame.Frame at 0x1489436d0>, 'not an emotion')]

[20]:

samples_vad_deep_speaker = [(frame, result_deep_speaker['flatten'][no]) for no, frame in enumerate(samples_vad)]
samples_vad_deep_speaker

[20]:

[(<malaya_speech.model.frame.Frame at 0x1489370d0>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943210>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489431d0>, 'surprise'),
 (<malaya_speech.model.frame.Frame at 0x148943290>, 'angry'),
 (<malaya_speech.model.frame.Frame at 0x1489432d0>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943350>, 'happy'),
 (<malaya_speech.model.frame.Frame at 0x148943390>, 'angry'),
 (<malaya_speech.model.frame.Frame at 0x1489433d0>, 'angry'),
 (<malaya_speech.model.frame.Frame at 0x148943450>, 'neutral'),
 (<malaya_speech.model.frame.Frame at 0x148943410>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943310>, 'angry'),
 (<malaya_speech.model.frame.Frame at 0x148943490>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489434d0>, 'sad'),
 (<malaya_speech.model.frame.Frame at 0x148943510>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943550>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489435d0>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943590>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943650>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943690>, 'sad'),
 (<malaya_speech.model.frame.Frame at 0x148943610>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943710>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x1489436d0>, 'disgust')]

[21]:

import matplotlib.pyplot as plt

[22]:

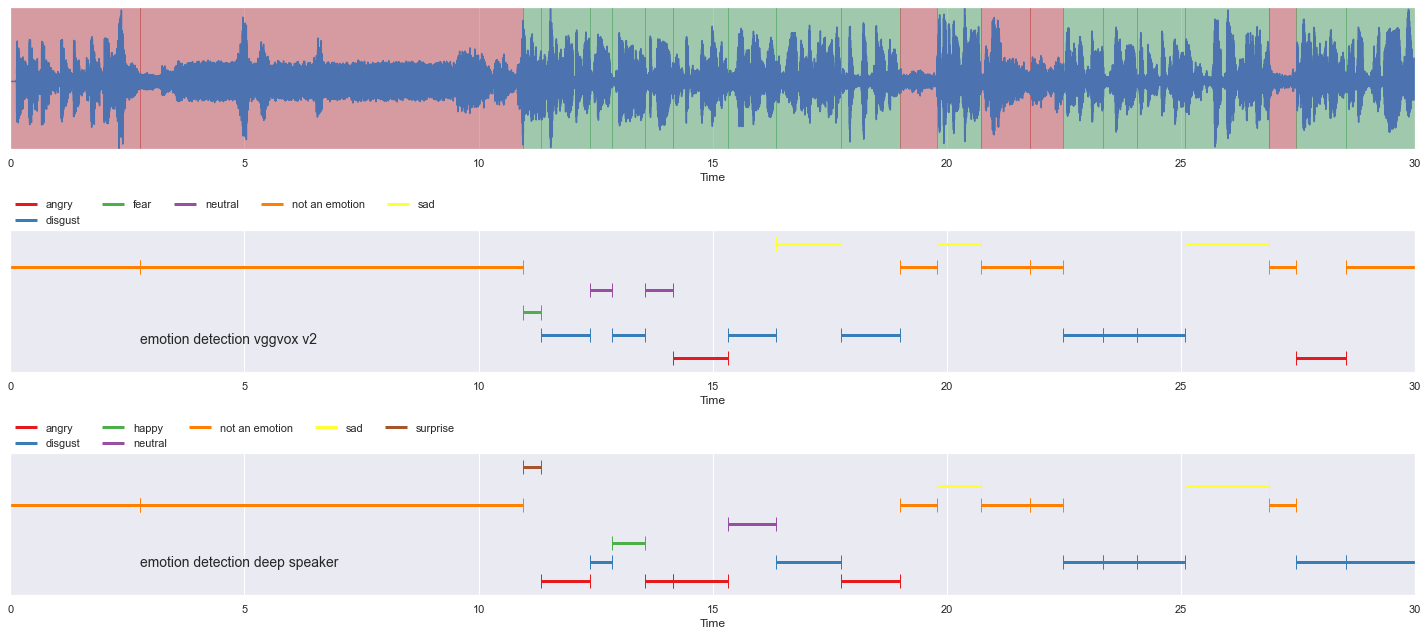

nrows = 3
fig, ax = plt.subplots(nrows = nrows, ncols = 1)
fig.set_figwidth(20)
fig.set_figheight(nrows * 3)
malaya_speech.extra.visualization.visualize_vad(y, grouped_vad, sr, ax = ax[0])
malaya_speech.extra.visualization.plot_classification(samples_vad_vggvox_v2,
                                                      'emotion detection vggvox v2', ax = ax[1])
malaya_speech.extra.visualization.plot_classification(samples_vad_deep_speaker,
                                                      'emotion detection deep speaker', ax = ax[2])
fig.tight_layout()
plt.show()

[23]:

p_quantized_vggvox_v2 = Pipeline()
pipeline = (
    p_quantized_vggvox_v2.foreach_map(quantized_vggvox_v2)
    .flatten()
)
p_quantized_vggvox_v2.visualize()

[23]:

[24]:

%%time

samples_vad = [g[0] for g in grouped_vad]
result_quantized_vggvox_v2 = p_quantized_vggvox_v2.emit(samples_vad)
result_quantized_vggvox_v2.keys()

CPU times: user 4.84 s, sys: 882 ms, total: 5.72 s
Wall time: 1.49 s

[24]:

dict_keys(['emotion', 'flatten'])

[25]:

samples_vad_quantized_vggvox_v2 = [(frame, result_quantized_vggvox_v2['flatten'][no]) for no, frame in enumerate(samples_vad)]
samples_vad_quantized_vggvox_v2

[25]:

[(<malaya_speech.model.frame.Frame at 0x1489370d0>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943210>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489431d0>, 'fear'),
 (<malaya_speech.model.frame.Frame at 0x148943290>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x1489432d0>, 'neutral'),
 (<malaya_speech.model.frame.Frame at 0x148943350>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943390>, 'neutral'),
 (<malaya_speech.model.frame.Frame at 0x1489433d0>, 'angry'),
 (<malaya_speech.model.frame.Frame at 0x148943450>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943410>, 'sad'),
 (<malaya_speech.model.frame.Frame at 0x148943310>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943490>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489434d0>, 'sad'),
 (<malaya_speech.model.frame.Frame at 0x148943510>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943550>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x1489435d0>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943590>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943650>, 'disgust'),
 (<malaya_speech.model.frame.Frame at 0x148943690>, 'sad'),
 (<malaya_speech.model.frame.Frame at 0x148943610>, 'not an emotion'),
 (<malaya_speech.model.frame.Frame at 0x148943710>, 'angry'),
 (<malaya_speech.model.frame.Frame at 0x1489436d0>, 'not an emotion')]

[26]:

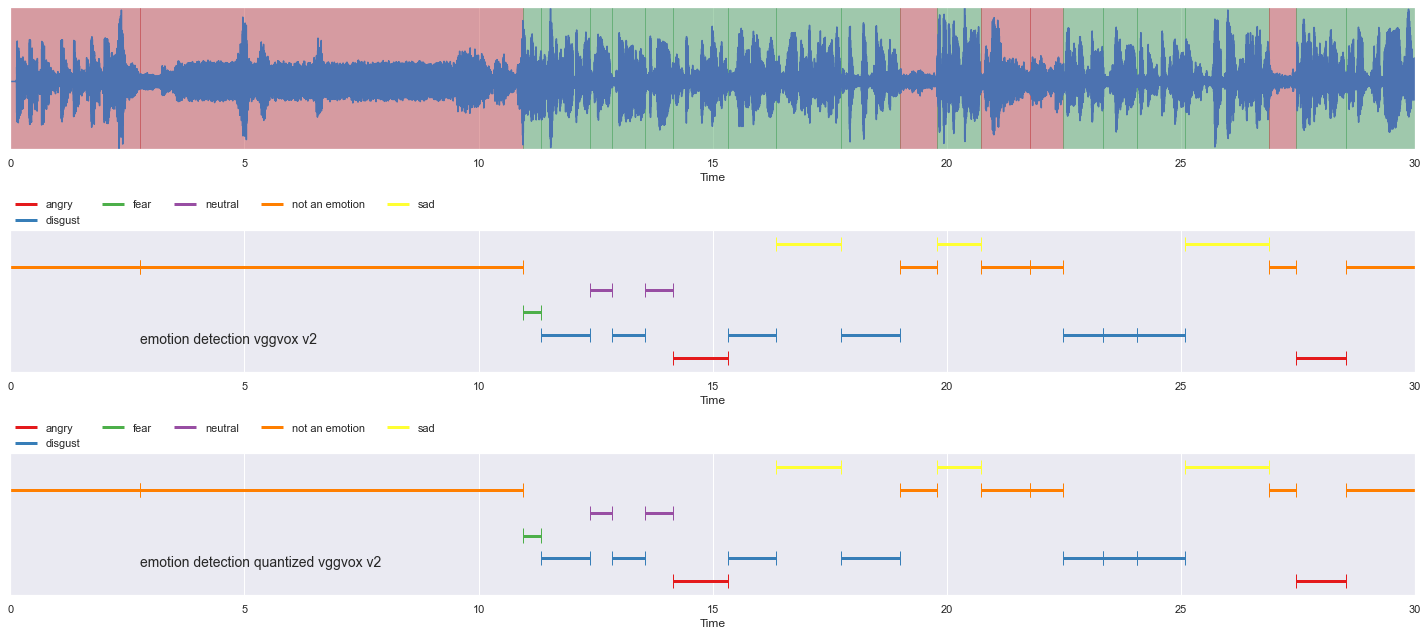

nrows = 3
fig, ax = plt.subplots(nrows = nrows, ncols = 1)
fig.set_figwidth(20)
fig.set_figheight(nrows * 3)
malaya_speech.extra.visualization.visualize_vad(y, grouped_vad, sr, ax = ax[0])
malaya_speech.extra.visualization.plot_classification(samples_vad_vggvox_v2,
                                                      'emotion detection vggvox v2', ax = ax[1])
malaya_speech.extra.visualization.plot_classification(samples_vad_quantized_vggvox_v2,
                                                      'emotion detection quantized vggvox v2', ax = ax[2])
fig.tight_layout()
plt.show()

Reference¶

Toronto emotional speech set (TESS), https://tspace.library.utoronto.ca/handle/1807/24487
The Singaporean White Boy - The Shan and Rozz Show: EP7, https://www.youtube.com/watch?v=HylaY5e1awo&t=2s&ab_channel=Clicknetwork
